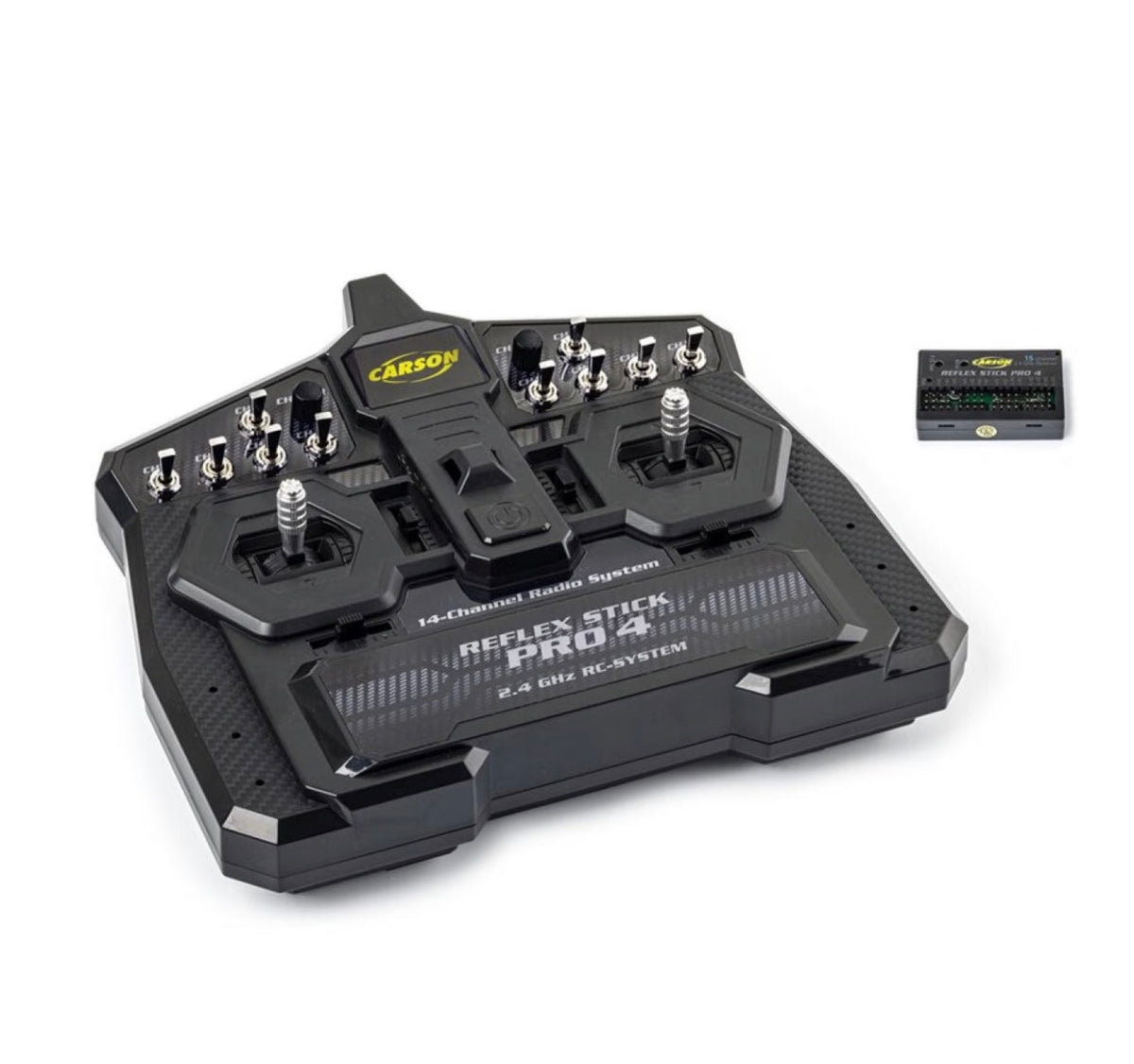

Carson C501022 FS 14 Ch Reflex Stick Pro 4 2.4GHz

The FS 14K Reflex Stick Pro 4 brings a 14-channel layout, 2.4GHz transmission and a modern ergonomic RC housing into one control system shaped for complex model functions. Its carbon-look surface and illuminated logo give the transmitter a technical, workshop-ready appearance when powered on. The channel structure is designed for detailed function control. Four channels work continuously and fully proportionally for direct response through the control sticks, while channels 7, 8, 9, 10, 13 and 14 are assigned to 3-position toggle switches. Channels 5, 6, 11 and 12 operate through 3-position push buttons with centre position, creating a clear split between proportional inputs and switched functions. The transmitter runs on 4.8 to 6 V from 4 AA cells, and the receiver power supply allows up to 11 V without BEC. A 15-channel receiver is listed in the included contents. For setup work, channels 1 to 4 feature servo reverse and trim, and channels 1 and 4 add dual rate for servo travel adjustment. This makes the system suitable for models that need tailored steering, throttle or auxiliary function behaviour. 100% compatibility is stated for TAMIYA MFC 01, MFC 02, MFC 03 and DMD units, which suits truck and function-model layouts with multiple switching tasks. 14 Years is stated as the recommended age.

Features
Four continuously adjustable, fully proportional channels
Channels 7, 8, 9, 10, 13, 14 via 3-position toggle switches
Channels 5, 6, 11, 12 via 3-position push buttons with center position
Servo reverse (reversing the direction of movement for channels 1–4)
Trim function for channels 1–4
Dual rate for channels 1 and 4 (servo travel adjustment)
100% compatible with TAMIYA MFC 01/02/03 and DMD unit
Failsafe system
Control sticks with precise, smooth mechanics
Modern ergonomic RC housing
Illuminated logo when powered on
Premium carbon-look surface

Technical Details

• Transmitter operating voltage: 4.8 – 6 V (4 AA cells)
• Receiver power supply (without BEC) up to 11 V possible
• Connector system: Graupner J/R
