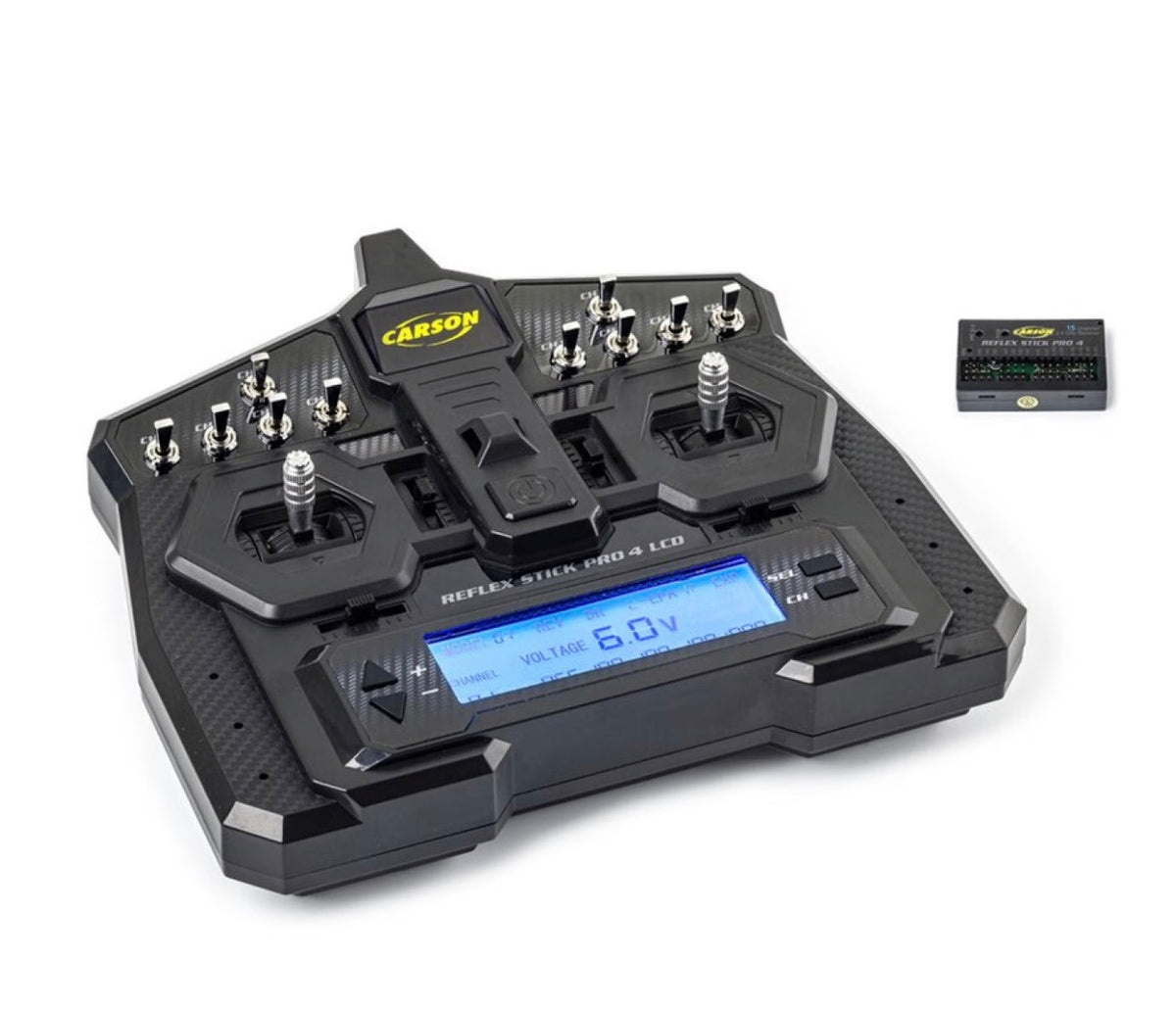

Carson C501023 FS 14Ch Reflex Stick Pro 4 LCD 2.4GHz

The FS 14K Reflex Stick Pro 4 LCD 2.4GHz brings broad channel control and fine setup options into one radio system built for demanding RC models. With 14 channels, an LCD layout and a 15-channel receiver in the set, it supports complex functions that go beyond basic steering and throttle, while the carbon-look finish and illuminated logo give the transmitter a distinctive technical appearance. Channels 7, 8, 9, 10, 13 and 14 use 3-position toggle switches, while channels 5, 6, 11 and 12 use 3-position push buttons with centre position. The transmitter runs on 4.8 to 6 V from 4 AA cells, and the receiver power supply can reach up to 11 V without BEC. A Graupner J/R connector system is used for integration, and the radio is 100% compatible with TAMIYA MFC 01, 02 and 03 as well as DMD units. The set includes the 14-channel LCD remote control, a 15-channel receiver and a manual. For truck, construction and function models with multiple switching tasks, the channel layout supports lighting, sound and auxiliary functions from one handset. The 14 Years marking fits advanced RC use, where stored model setups and detailed channel assignment matter during regular driving and system changes.

Features
15 model memory
Four continuously adjustable, fully proportional channels
Channels 7, 8, 9, 10, 13, 14 with 3-position toggle switch
Channels 5, 6, 11, 12 with 3-position push button with center position
Dual Rate Channels 1-4 (servo travel limit)
100% compatible with TAMIYA MFC 01/02/03 and DMD units
Servo Reverse (reversal of rotation direction for channels 1-4)
Trim function for channels 1-4
EPA Channels 1-4 (servo travel limit)
EXP function Channels 1-4 (exponential)
Failsafe system
Stick units with sensitive mechanics
Modern ergonomic RC casing
Logo illumination when powered on
Surface with elegant carbon-look finish

Technical Details

• Operating voltage transmitter: 4.8 - 6 V (4 AA cells)
• Receiver power supply (without BEC) up to 11 V possible
• Connector system: Graupner J/R
